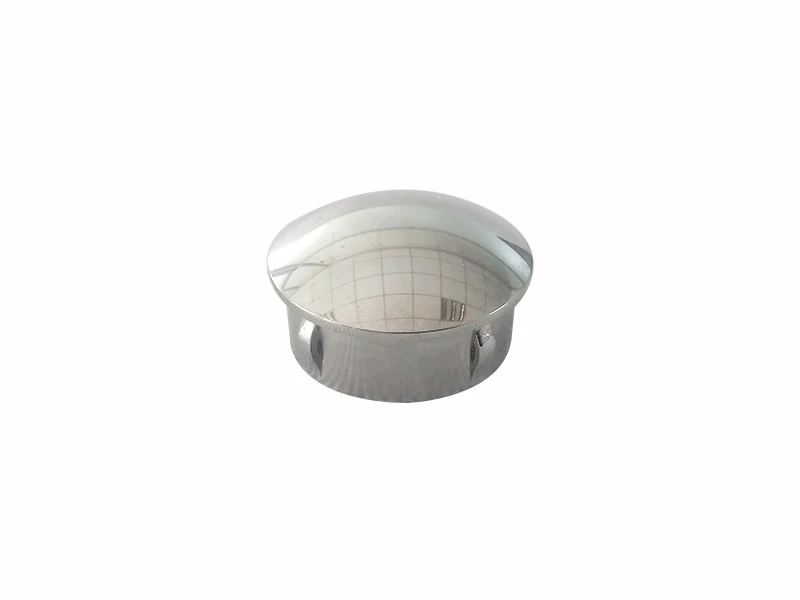

The Stainless End Cap with a knock-in design is a high-quality, durable hardware component engineered to provide a strong, secure, and aesthetic finish for architectural railings. This professional handrail end cap features specialized internal snap-in locking tabs that expand against the inner pipe wall upon insertion. This mechanical expansion holds the plug firmly in place over time without requiring any additional external fasteners, screws, or on-site welding. It serves as a reliable, clean closure to cover raw tube ends, significantly enhancing public safety while elevating the overall look of the balustrade system.

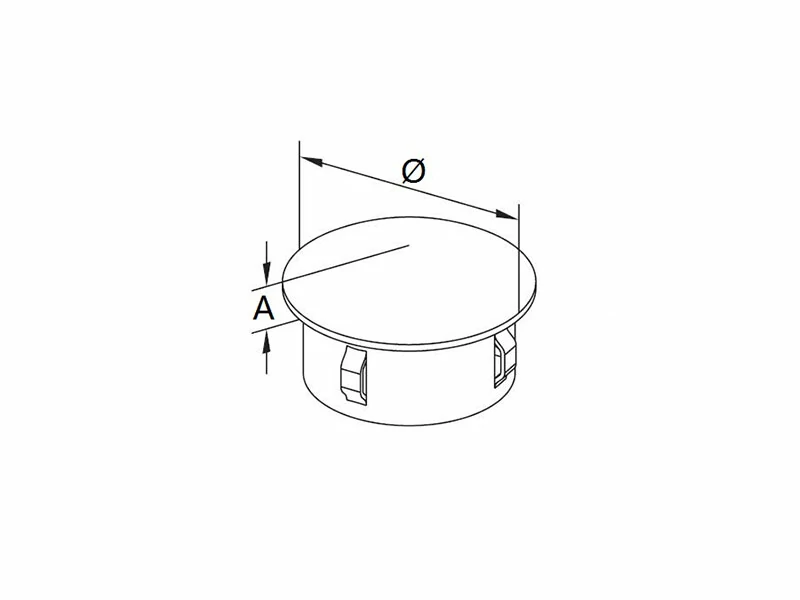

This Stainless Steel End Cap features a low-profile curved lip design with a precise visual shoulder height (A). The lower cylindrical insert barrel houses the flexible tension tabs, ensuring the top cap seats tightly and perfectly flush against the outer rim of the tubing. Forged from premium-grade stainless steel—available in AISI 304, AISI 316, or Duplex SS 2205—these industrial handrail fittings ensure long-lasting durability and exceptional corrosion resistance. Precision-manufactured to accommodate standard round railing outer diameters of 25.4mm (1 inch) and 38.1mm (1.5 inch), this knock-in series can be specified in either a sleek brushed satin or a highly reflective mirror-polished surface finish.
|
Category |
Part NO. |
Fit for Tube
(mm) |
A (mm) |
Ø (mm) |
Material |
Surface |
Place of Production |
| End Caps |
B0325 |
Ø25.4 x 1.5
|
3 |
25.4 |
AISI 304,316 or Duplex SS 2205 |
Satin or Mirror polished |
Shandong, China |
| End Caps |
B0338 |
Ø38.1 x 1.5
|
8 |
38.1 |
1. Manufacturing Process: Investment Casting + Precision Machining+Polishing
2. Application Scenario: Hotel, Villa, Apartment, Office Building, Hospital, School, Mall, Sports Venues, Leisure Facilities, Supermarket, Park, Bathroom, Outdoor, Exterior, Entry, Hall, Staircase, Gym
3. Use Place: Bridge Railings / Handrails, Deck Railings / Handrails, Porch Railings / Handrails, Stair Railings / Handrails
4. Design Style: Contemporary, Modern, European, Craftsman
5. Certificate: ISO9001:2015
6. Engineering Solution Capability: Graphic Design, 3d Model Design, Total Solution For Projects
7. Certificates: Material Certificates, Dimension Inspection Certificate
8. Lead Time : 60days batch production after end cap samples approved
9. Warranty Service: 1 Year
10. After-sales Service: Online Technical Support, Return And Replacement
Q1. How does the knock-in locking tab mechanism function?
A: Unlike basic friction plugs, this model incorporates raised metal locking tabs along its insert collar. When the cap is driven into the tube, these spring-loaded tabs compress and then bite outward against the interior pipe wall, preventing the hardware from wiggling free or being pulled out.
Q2. What tube sizes does this Stainless End Cap fit?
A: This high-strength cap is manufactured to precisely fit standard architectural tubing profiles. It is available for outer diameters of 25.4mm (1 inch) and 38.1mm (1.5 inch). For exact lip thickness and dimensional metrics (A), please reference the technical drawing.
Q3. In what architectural settings are these handrail end caps typically used?
A: These knock-in closures are frequently specified in both residential and commercial projects. They are ideal for securing exposed metal pipe terminals on multi-tier staircases, outdoor balconies, safety ramps, and public walkways in hotels, offices, and residential complexes.
Q4. Can these handrail fittings withstand harsh outdoor weather conditions?
A: Yes. For interior staircases and climate-controlled corridors, Grade AISI 304 stainless steel provides excellent durability. For exterior layouts, coastal environments, or humid poolside decks, we recommend specifying marine-grade AISI 316 or Duplex SS 2205 to ensure top-tier resistance against rust, oxidation, and pitting.
Q5. Is any specialized tooling required for a secure installation?
A: No complex tools or adhesives are necessary. Simply align the internal barrel with the clean, raw cut end of your stainless steel handrail tube and drive it home using a non-marring rubber mallet until the shoulder sits completely flush against the pipe rim.
