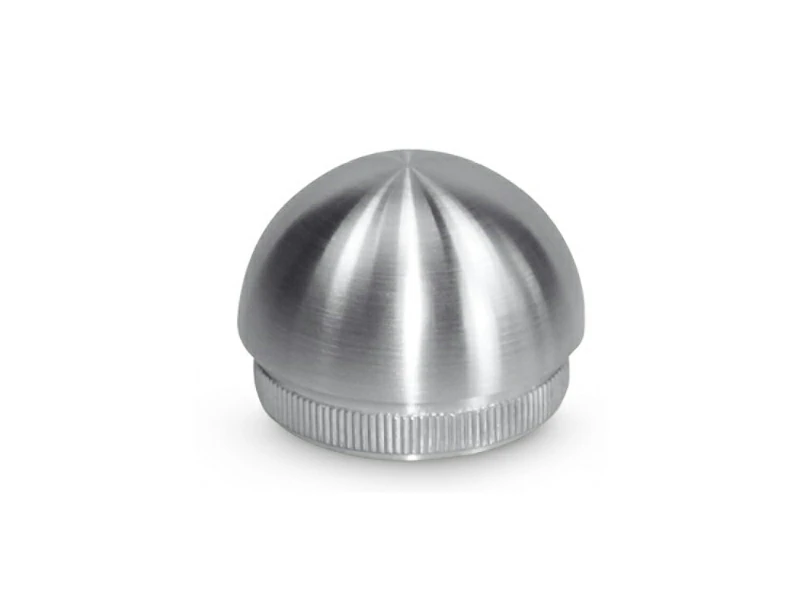

The Ball End Cap is a premium decorative and functional hardware solution designed to cover the open ends of architectural tubes, posts, or pipes. This distinctively styled stainless steel end cap features a prominent half-ball, rounded configuration that adds an elegant, high-end aesthetic appeal to residential and commercial architectural railing systems. Beyond its unique visual impact, the smooth, spherical surface enhances public safety by eliminating sharp metal edge hazards, making it an excellent choice for high-traffic environments, pedestrian balustrades, and structural piping systems.

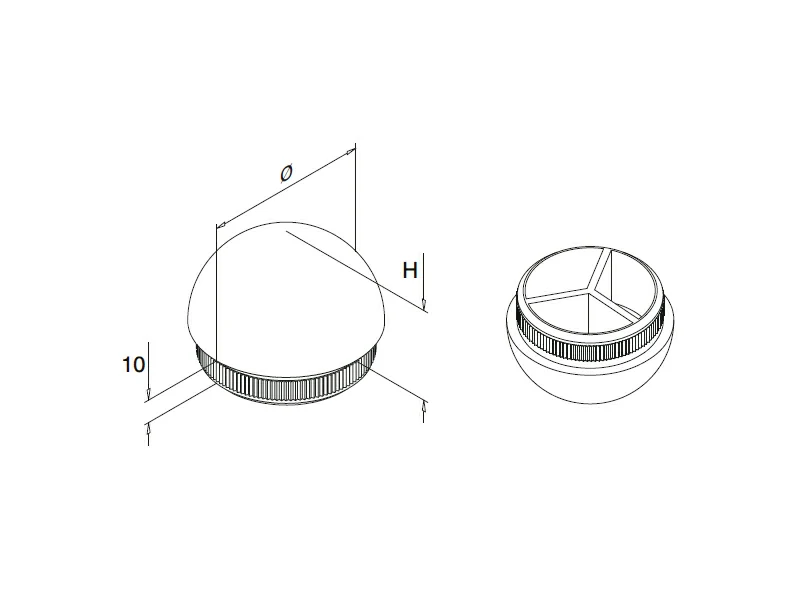

Engineered to endure demanding conditions, these handrail fittings are manufactured from superior-grade stainless steel options, including AISI 304, AISI 316, and Duplex SS 2205. The structural design features a 10 mm internal insertion depth lined with a knurled friction-fit perimeter, alongside an integrated three-point reinforced underside template to guarantee rigid structural alignment. Available to fit popular architectural tubing outer diameters of 33.7 mm, 42.4 mm, and 48.3 mm, the cap effectively seals out moisture, debris, and dirt. It is offered in both satin-polished and mirror-polished finishes to complement either an understated industrial look or a high-shine premium design.
|
Category |
Part NO. | Ø |
H |
Material |
Surface |
Place of Production |
|
End Caps
|
B003.33.20 |
33.7×2.0mm |
17mm |
AISI 304,316 or Duplex SS 2205 |
Satin or Mirror polished |
Shandong, China |
|
End Caps |
B003.42.20 |
42.4×2.0mm |
21mm |
|||
|
End Caps |
B003.42.26 |
42.4×2.6mm |
21mm |
|||
|
End Caps |
B003.48.20 |
48.3×2.0mm |
24mm |
|||
|
End Caps |
B003.48.26 |
48.3×2.6mm |
24mm |
1. Manufacturing Process: Investment Casting + Precision Machining+Polishing
2. Application Scenario: Hotel, Villa, Apartment, Office Building, Hospital, School, Mall, Sports Venues, Leisure Facilities, Supermarket, Park, Bathroom, Outdoor, Exterior, Entry, Hall, Staircase, Gym
3. Use Place: Bridge Railings / Handrails, Deck Railings / Handrails, Porch Railings / Handrails, Stair Railings / Handrails
4. Design Style: Contemporary, Modern, European, Craftsman
5. Certificate: ISO9001:2015
6. Engineering Solution Capability: Graphic Design, 3d Model Design, Total Solution For Projects
7. Certificates: Material Certificates, Dimension Inspection Certificate
8. Lead Time : 60days batch production after end cap samples approved
9. Warranty Service: 1 Year
10. After-sales Service: Online Technical Support, Return And Replacement
Q1: What are the main benefits of using a Ball End Cap over a flat end cap?
A: The Ball End Cap offers a highly pronounced, decorative half-ball shape that creates a distinct architectural point of interest on posts and balustrades. Functionally, its smooth, convex spherical design provides increased safety against clothing snags or scratches and sheds moisture more effectively than flat alternatives.
Q2: Which stainless steel material grade is right for my project?
A: The ideal alloy depends heavily on the installation environment:
AISI 304: Tailored for interior installations, residential indoor staircases, and dry commercial spaces.
AISI 316: Highly recommended for standard outdoor balustrades, urban handrails, and environments exposed to regular weathering.
Duplex SS 2205: Engineered specifically for heavy industrial applications, coastal installations, and marine environments subject to severe saltwater corrosion.
Q3: Does this half-ball cap require professional welding or fasteners to install?
A: No, welding or external screws are unnecessary. The component features a 10 mm deep insertion sleeve with a knurled, ribbed texture that ensures a secure mechanical friction lock. For a permanent installation, ensure the pipe end is deburred and cut completely square, then press or tap the cap firmly into place using a soft-faced rubber mallet.
Q4: What specific pipe dimensions will these caps fit?
A: These caps are precision-manufactured to match standard architectural tube outer diameters, specifically 33.7 mm, 42.4 mm, and 48.3 mm. Please check your structural piping or handrail specifications to ensure exact dimensional compatibility before ordering.
