The Adjustable Handrail Bracket 90 Degree is a heavy-duty stainless steel mounting fixture designed to anchor handrail tubing securely to structural walls. Featuring a 90-degree arm design with an adjustable top saddle mechanism, this bracket allows for precise angle alignment during installation. It provides versatile mounting capabilities across staircases, balconies, and sloped or horizontal walkways, accommodating both flat surfaces and round handrail tubing.

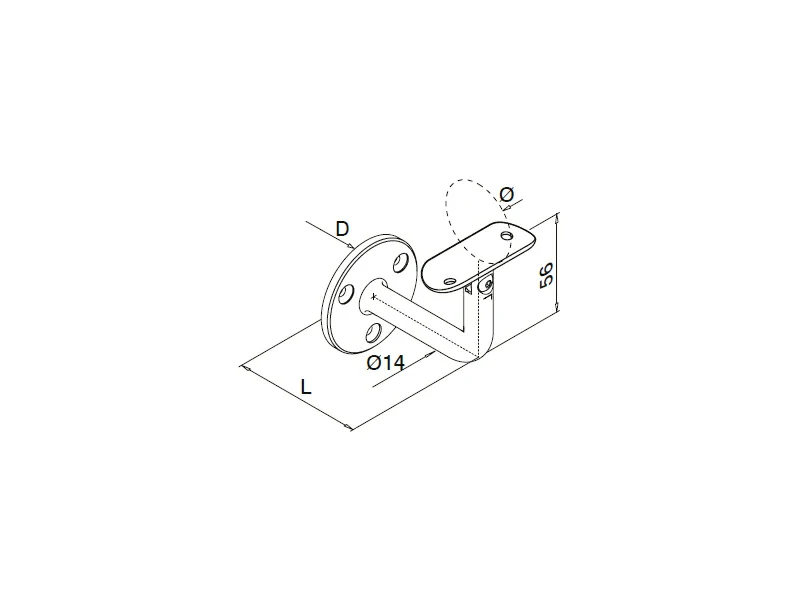

Constructed with a heavy-duty solid Ø 14 mm support rod, the fitting is anchored via a circular wall flange base plate (D = 60 mm equipped with three countersunk screw holes. Engineering specifications include a total extension length (L) of 85 mm from the wall base to the outer edge of the elbow, and a vertical offset height of 56 mm from the rod center to the saddle plate. The top saddle plate is designed to cradle flat handrail bottoms as well as round tube profiles with outside diameters of Ø 42.4 mm and Ø 48.3 mm.
Manufactured in premium AISI 304, AISI 316, and Duplex SS 2205 stainless steel grades, these architectural Handrail Brackets provide long-lasting durability and corrosion resistance across indoor, outdoor, and harsh environmental settings. Available in refined satin (matte) and reflective mirror polished surface finishes, these essential handrail fittings ensure code-compliant safety and seamless aesthetic integration.
|
Category |
Part NO. | D | L | Ø |
Material |
Surface |
Place of Production |
|
Handrail Brackets |
E008.00.00 |
60mm | 85mm |
Flat |
AISI 304,316 or Duplex SS 2205 |
Satin or Mirror polished |
Shandong, China |
| Handrail Brackets |
E008.00.42 |
60mm | 85mm |
42.4mm |
|||
| Handrail Brackets |
E008.00.48 |
60mm | 85mm |
48.3mm |
1. Manufacturing Process: Investment Casting + Precision Machining+Polishing
2. Application Scenario: Hotel, Villa, Apartment, Office Building, Hospital, School, Mall, Sports Venues, Leisure Facilities, Supermarket, Park, Bathroom, Outdoor, Exterior, Entry, Hall, Staircase, Gym
3. Use Place: Bridge Railings / Handrails, Deck Railings / Handrails, Porch Railings / Handrails, Stair Railings / Handrails
4. Installation Location: Flooring
5. Design Style: Contemporary, Modern, European, Craftsman
6. Certificate: ISO9001:2015
7. Engineering Solution Capability: Graphic Design, 3d Model Design, Total Solution For Projects
8. Certificates: Material Certificates, Dimension Inspection Certificate
9. Lead Time : 60days batch production after handrail bracket samples approved
10. Warranty Service: 1 Year
11. After-sales Service: Online Technical Support, Return And Replacement
Q1: What is the primary advantage of choosing an Adjustable Handrail Bracket over a fixed model?
A: An Adjustable Handrail Bracket features a pivoting saddle mechanism that lets installers adjust and set the mounting plate to match the precise slope angle of stairs or ramps, ensuring optimal surface contact with the handrail.
Q2: What handrail profiles and tube diameters fit this bracket?
A: The top saddle plate accommodates flat-bottom timber or metal handrails, as well as standard round architectural tubing with outside diameters of Ø 42.4 mm and Ø 48.3 mm.
Q3: How do I select the right stainless steel grade for my application?
A: Material choice depends on the installation environment:
AISI 304: Best suited for indoor residential, commercial office, and dry interior settings.
AISI 316: Standard specification for outdoor walkways, balconies, decks, and humid public spaces needing enhanced weather resistance.
Duplex SS 2205: Engineered for extreme marine, coastal, and harsh chemical industrial environments requiring superior yield strength and salt fog resistance.
Q4: What surface finish options are available for these Handrail Brackets?
A: Brackets are available in a brushed satin (matte) finish to conceal daily wear and fingerprints in high-traffic zones, or a mirror polished finish for a high-luster, reflective surface that minimizes dirt and environmental residue buildup.
