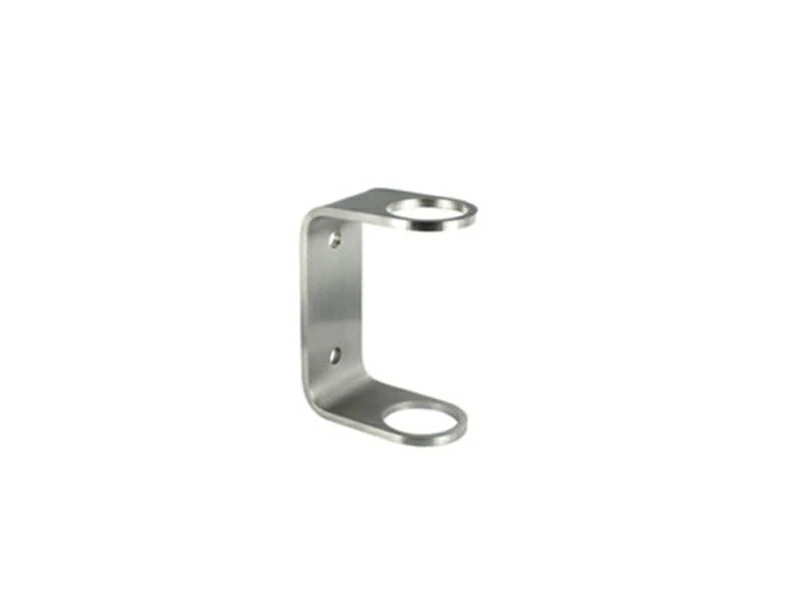

The Stainless Steel Baluster Mounting Bracket is a C-shaped structural side-fix component engineered to attach vertical balusters (posts) firmly to supporting structures, such as walls, fascia boards, or deck perimeters. By anchoring baluster posts laterally along structural surfaces, this bracket establishes a secure connection between handrail assemblies and structural substrates, maximizing usable deck or floor space while maintaining high load resistance.

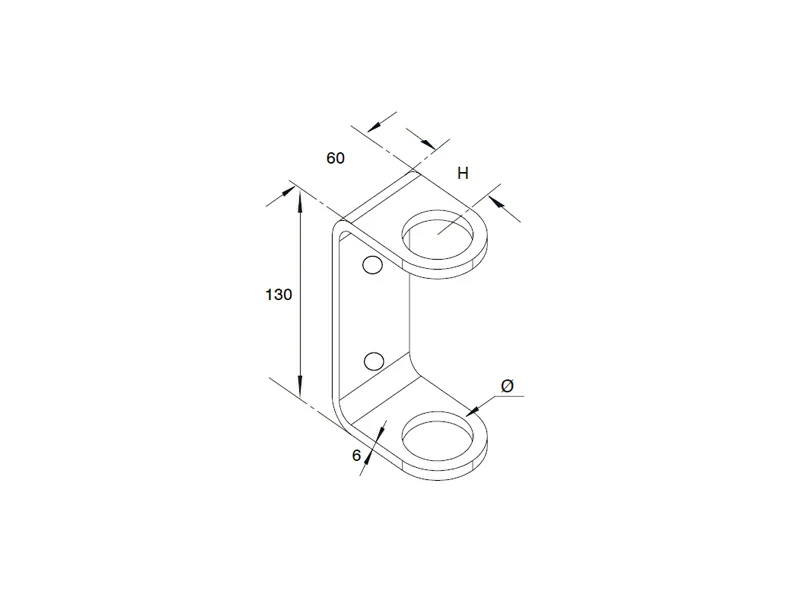

Formed from 6 mm thick heavy-duty stainless steel, this bracket features a 130 mm backplate height and a 60 mm width profile. The extended C-shaped top and bottom flanges incorporate precision-cut circular receiver holes (∅) available in 42.4 mm and 48.3 mm inner diameters to hold standard round baluster pipes. The backplate incorporates pre-drilled mounting holes positioned at a flange-to-hole distance (L) of 45 mm for flush anchor bolt installation. Manufactured from premium stainless steel grades—AISI 304, AISI 316, or Duplex SS 2205—and available in brushed satin or mirror-polished finishes, these versatile Baluster Brackets serve as an essential structural fitting across comprehensive Railing Fittings selections.
|
Category |
Part NO. |
Ø |
L |
Material |
Surface |
Place of Production |
|
Baluster Brackets |
I007.45.42 |
42.4mm |
45mm |
AISI 304, 316 or Duplex SS 2205 |
Satin or Mirror polished |
Shandong, China |
|
Baluster Brackets |
I007.45.48 |
48.3mm |
45mm |
1. Manufacturing Process: Investment Casting + Precision Machining+Polishing
2. Application Scenario: Hotel, Villa, Office Building, Hospital, School, Leisure Facilities, Supermarket, Warehouse, Workshop, Park, Farmhouse, Courtyard, Bathroom etc.
3. Use Place: Bridge Railings / Handrails, Deck Railings / Handrails, Porch Railings / Handrails, Stair Railings / Handrails
4. Certificate: ISO9001:2015
5. Engineering Solution Capability: Graphic Design, 3d Model Design, Total Solution For Projects
6. Certificates: Material Certificates, Dimension Inspection Certificate
7. Lead Time : 35days for samples making +45days batch production after baluster bracket samples approved
8. Warranty Service: 3 Years
9. After-sales Service: Online Technical Support, Return And Replacement
Q1: What is the primary function of a C-shaped Baluster Mounting Bracket?
A: A Baluster Mounting Bracket provides a heavy-duty side-mount anchor point that secures a vertical round baluster post directly to the vertical face of a wall, fascia, or stair stringer.
Q2: What baluster tube sizes fit this mounting bracket?
A: The top and bottom flange holes (∅) are precision-machined to hold standard round baluster posts measuring 42.4 mm and 48.3 mm in outer diameter.
Q3: What material thickness is used for this C-shaped bracket?
A: This bracket is fabricated from 6 mm thick solid stainless steel to ensure high structural rigidity and resistance against lateral loads.
Q4: Which stainless steel material grade is recommended for outdoor or marine applications?
A: For outdoor, coastal, or severe marine environments, select AISI 316 or Duplex SS 2205 stainless steel to ensure maximum protection against chloride pitting, salt spray, and atmospheric rust.
