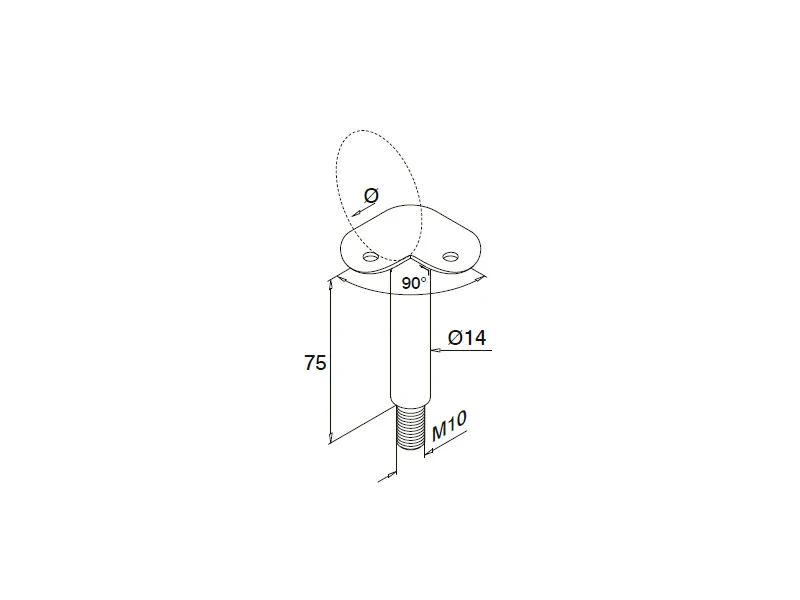

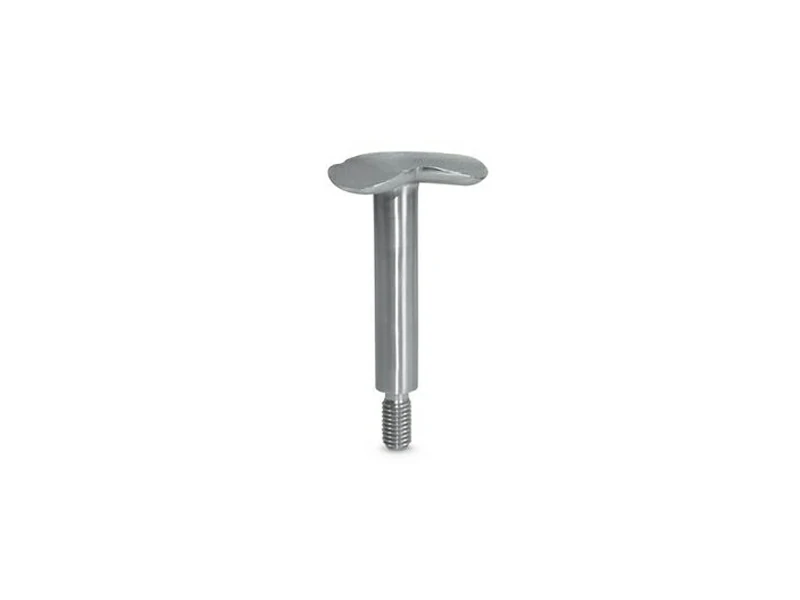

This Handrail Stem Saddle 90° Top Plate is a handrail support bracket designed for making a 90-degree turn. It is design is specifically for a 90-degree angle, ideal for connecting two tubes in a right-angle arrangement, and securely hold a handrail tube. The stem is threaded (M10), allowing it to be securely fastened into another component or structure using an M10 bolt or nut. The product is available in various materials and finishes to meet diverse project requirements. The Handrail Stem Saddle 90° Top Plate is ideal for handrail systems, particularly where a 90-degree angle connection is required. This can be used in staircases, balconies, or any structure that needs a secure handrail.
|
Category |
Part NO. |
Ø |
H |
Material |
Surface |
Place of Production |
|
Handrail Supports |
F007.14.00 |
Flat |
75mm |
AISI 304, 316 or Duplex SS 2205 |
Satin or Mirror polished |
Shandong, China |
|
Handrail Supports |
F007.14.42 |
42.4mm |
75mm |
|||
|
Handrail Supports |
F007.14.48 |
48.3mm |
75mm |
1. Tube Thickness: 2.0mm or 2.6mm
2. Manufacturing Process: Investment Casting + Precision Machining+Polishing
3. Advantage: Easier and quicker installatio; Easier cleaning and maintenance
4. Application Scenario: Hotel, Villa, Apartment, Office Building, Hospital, School, Mall, Sports Venues, Leisure Facilities, Supermarket, Warehouse, Workshop, Park, Wine Cellar, Entry, etc.
5. Use Place: Bridge Railings / Handrails, Deck Railings / Handrails, Porch Railings / Handrails, Stair Railings / Handrails
6. Installation Location: Floor / Wall
7. Certificate: ISO9001:2015
8. Engineering Solution Capability: Graphic Design, 3d Model Design, Total Solution For Projects, Others
9. Certificates: Material Certificates, Dimension Inspection Certificate
10. Lead Time : 45days for samples making +50days batch production after railing support samples approved
11. Warranty Service: 1 Year
12. After-sales Service: Online Technical Support, Return And Replacement
