The Handrail Wall Bracket is a versatile stainless steel support fitting designed to anchor round or flat handrails securely to walls, posts, and vertical mounting surfaces. Engineered for residential staircases and commercial railing systems, this bracket attaches firmly at fixed wall locations while allowing handrail tubing to run continuously along horizontal paths, ramps, or sloped stairways. Featuring an adjustable height saddle stem, it provides installer-friendly flexibility to ensure precise alignment across uneven wall surfaces and architectural variances.

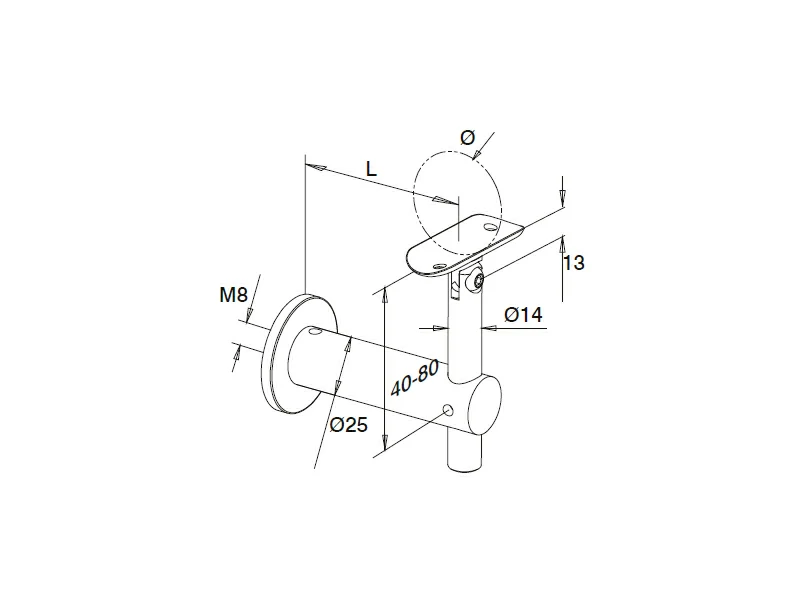

The structural assembly features a wall flange cover plate concealing an M8 metric mounting stud for secure, concealed anchoring into timber studs, masonry, or concrete walls. A solid Ø 25 mm horizontal main supporting tube projects L = 85 mm outward from the wall face to the handrail centerline, ensuring adequate hand clearance. The Ø 14 mm vertical support rod offers a height adjustment range of 40 mm to 80 mm (measured from horizontal arm axis to saddle), coupled with a 13 mm saddle lip height. The mounting saddle accommodates flat-bottom handrails as well as standard cylindrical tubes measuring Ø 42.4 mm and Ø 48.3 mm
Manufactured in premium AISI 304, AISI 316, and Duplex SS 2205 stainless steel grades, these durable handrail brackets offer superior structural reliability and long-term corrosion resistance in challenging environments. Available in brushed satin (matte) and mirror polished finishes, these architectural handrail fittings maintain a modern aesthetic while meeting building code compliance..
|
Category |
Part NO. |
Ø |
L |
Material |
Surface |
Place of Production |
|
Handrail Brackets |
E013.00.00 |
Flat |
85mm |
Stainless Steel 304 / 316 |
Satin or Mirror polished |
Shandong, China |
| Handrail Brackets |
E013.00.42 |
42.4mm | 85mm | |||
| Handrail Brackets |
E013.00.48 |
48.3mm | 85mm |
1. Manufacturing Process: Investment Casting + Precision Machining+Polishing
2. Application Scenario: Hotel, Villa, Apartment, Office Building, Hospital, School, Mall, Sports Venues, Leisure Facilities, Supermarket, Park, Bathroom, Outdoor, Exterior, Entry, Hall, Staircase, Gym
3. Use Place: Bridge Railings / Handrails, Deck Railings / Handrails, Porch Railings / Handrails, Stair Railings / Handrails
4. Installation Location: Wall / Post
5. Design Style: Contemporary, Modern, European, Craftsman
6. Certificate: ISO9001:2015
7. Engineering Solution Capability: Graphic Design, 3d Model Design, Total Solution For Projects
8. Certificates: Material Certificates, Dimension Inspection Certificate
9. Lead Time : 60days batch production after handrail bracket samples approved
10. Warranty Service: 1 Year
11. After-sales Service: Online Technical Support, Return And Replacement
Q1: What is the main advantage of choosing an adjustable Handrail Wall Bracket?
A: The height-adjustable mechanism (40–80 mm) allows installers to correct minor wall imperfections and slope variances during assembly, ensuring a completely straight handrail run without custom shimming.
Q2: How is the bracket mounted to the wall surface?
A: The bracket utilizes a central M8 metric threaded stud that anchors into wall inserts, studs, or structural anchors. The wall rosette snaps over the base to conceal all mounting hardware for a clean, professional finish.
Q3: Which handrail sizes and profiles fit the top saddle?
A: The saddle plate supports flat-bottom timber or stainless steel handrails, as well as round architectural handrail tubes with outside diameters of Ø 42.4 mm and Ø 48.3 mm.
Q4: Which stainless steel material grade should I specify for my project?
A: Material selection depends on environmental exposure:
AISI 304: Best suited for climate-controlled indoor commercial buildings, offices, and residential stairways.
AISI 316: Ideal for general outdoor walkways, balconies, and humid indoor spaces requiring enhanced weather resistance.
Duplex SS 2205: Engineered for marine environments, coastal decks, and industrial facilities exposed to severe chemical or salt fog hazards.
