The Stainless Steel Fascia Mount Bracket is a heavy-duty side-mount structural fitting engineered to attach vertical round balusters or railing posts directly to the vertical fascia board, deck edge, balcony border, or concrete perimeter wall. By anchoring balusters to the outer vertical face of a structure, this bracket eliminates floor-surface penetrations, preserving usable deck space while providing robust structural stability and a clean architectural profile.

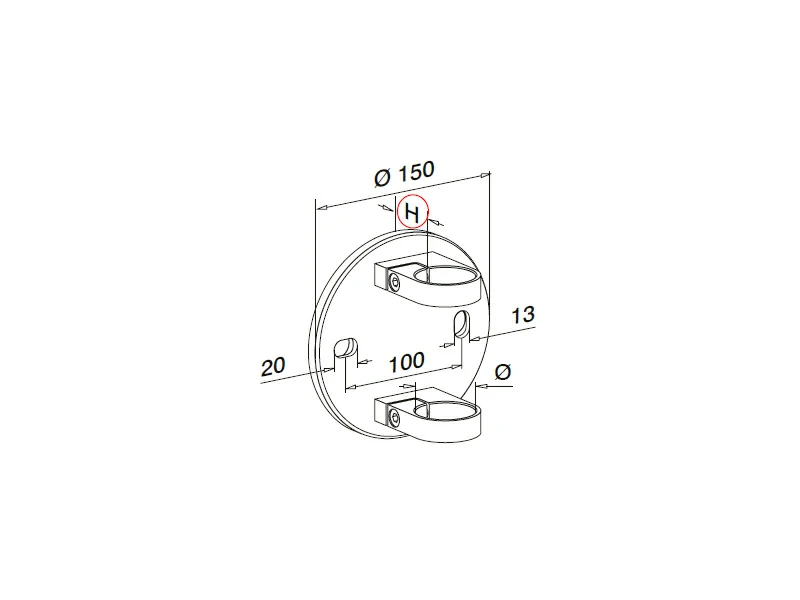

Featuring a large circular base plate with a 150 mm outer diameter, this side-mount assembly incorporates dual elongated mounting slots measuring 13 mm wide by 20 mm long with a 100 mm center-to-center distance to allow for precise alignment and level adjustments during installation. The integrated upper and lower collar clamps feature an offset distance (H) of 45 mm from the central vertical axis of the plate, holding round baluster tubes with outer diameters (Ø) of 42.4 mm or 48.3 mm. Precision-manufactured from high-performance stainless steel grades—AISI 304, AISI 316, or Duplex SS 2205—and available in brushed satin or mirror-polished surface finishes, these specialized Baluster Brackets serve as an essential side-fix component within modern railing fittings catalog offerings.
|
Category |
Part NO. |
H |
Ø |
Material |
Surface |
Place of Production |
|
Baluster Brackets |
I001.45.42 |
45mm |
42.4mm |
AISI 304, 316 or Duplex SS 2205 |
Satin or Mirror polished |
Shandong, China |
|
Baluster Brackets |
I001.45.48 |
45mm |
48.3mm |
1. Manufacturing Process: Investment Casting + Precision Machining+Polishing
2. Application Scenario: Hotel, Villa, Office Building, Hospital, School, Leisure Facilities, Supermarket, Warehouse, Workshop, Park, Farmhouse, Courtyard, Bathroom etc.
3. Use Place: Bridge Railings / Handrails, Deck Railings / Handrails, Porch Railings / Handrails, Stair Railings / Handrails
4. Installation Location: Wall
5. Certificate: ISO9001:2015
6. Engineering Solution Capability: Graphic Design, 3d Model Design, Total Solution For Projects
7. Certificates: Material Certificates, Dimension Inspection Certificate
8. Lead Time : 35days for samples making +45days batch production after baluster bracket samples approved
10. Warranty Service: 3 Years
11. After-sales Service: Online Technical Support, Return And Replacement
Q1: What is the primary function of a Fascia Mount Bracket?
A: A Fascia Mount Bracket anchors vertical railing posts directly to the side face or fascia of a deck or balcony, preserving floor space and providing high lateral load support.
Q2: What baluster pipe diameters fit this bracket?
A: This bracket is engineered with dual clamp collars designed to securely hold standard round baluster pipes with outer diameters of 42.4 mm and 48.3 mm.
Q3: How do the elongated mounting slots assist during installation?
A: The 13 mm × 20 mm slotted holes with a 100 mm center distance allow installers to adjust the bracket vertically and make micro-leveling corrections before tightening anchor bolts.
Q4: Which material grade should be selected for outdoor or marine fascia installations?
A: For outdoor, coastal, or severe marine environments, select AISI 316 or Duplex SS 2205 stainless steel to ensure maximum resistance against salt spray, chloride corrosion, and harsh atmospheric weathering.
