The Stainless Steel Baluster Tube Clamp is a precision-engineered mounting hardware component designed to grip and secure vertical baluster tubes firmly within modular railing assemblies. Featuring a circular clamping loop paired with a heavy-duty square mounting block, this clamp provides high clamping force and alignment stability while maintaining a clean, modern aesthetic across staircases, balustrades, and guardrail structures.

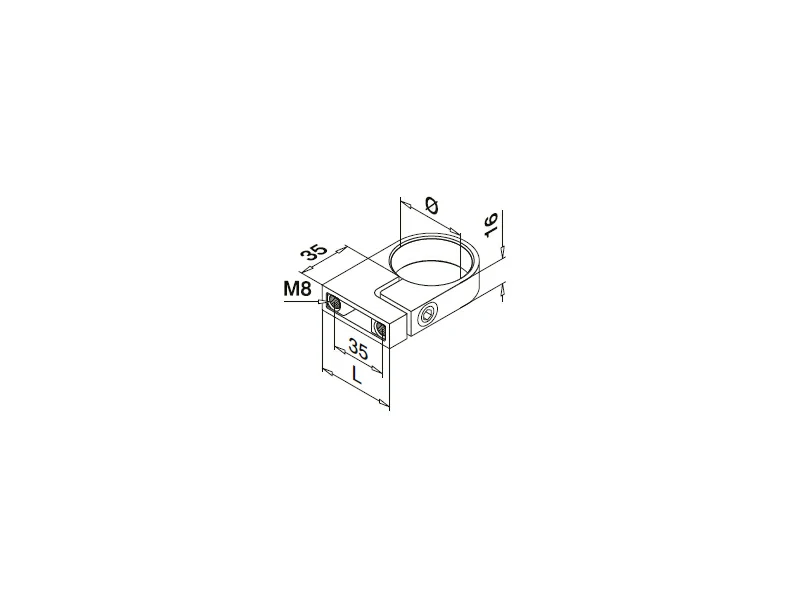

This tube clamp features a 16 mm ring height and a 35\text{ mm × 35 mm square block profile equipped with two internal M8 threaded mounting holes for bolt attachment. It is available in total front mounting face widths (L) of 50 mm and 55 mm, with inner clamping loop diameters (Ø) designed to hold standard round baluster pipes measuring 42.4 mm or 48.3 mm. Precision-machined from high-grade stainless steel options—including AISI 304, AISI 316, and Duplex SS 2205—and offered in brushed satin (matte) or mirror-polished (shiny) finishes, these specialized Baluster Brackets serve as an essential structural clamping fitting within comprehensive railing fittings catalog collections.
|
Category |
Part NO. |
Ø |
L |
Material |
Surface |
Place of Production |
|
Baluster Brackets |
I005.50.42 |
42.4mm |
50mm |
AISI 304, 316 or Duplex SS 2205 |
Satin or Mirror polished |
Shandong, China |
|
Baluster Brackets |
I005.55.48 |
48.3mm |
55mm |
1. Manufacturing Process: Investment Casting + Precision Machining+Polishing
2. Application Scenario: Hotel, Villa, Office Building, Hospital, School, Leisure Facilities, Supermarket, Warehouse, Workshop, Park, Farmhouse, Courtyard, Bathroom etc.
3. Use Place: Bridge Railings / Handrails, Deck Railings / Handrails, Porch Railings / Handrails, Stair Railings / Handrails
4. Installation Location: Wall
5. Certificate: ISO9001:2015
6. Engineering Solution Capability: Graphic Design, 3d Model Design, Total Solution For Projects
7. Certificates: Material Certificates, Dimension Inspection Certificate
8. Lead Time : 35days for samples making +45days batch production after baluster bracket samples approved
10. Warranty Service: 3 Years
11. After-sales Service: Online Technical Support, Return And Replacement
Q1: What is the primary function of a Baluster Tube Clamp?
A: A Baluster Tube Clamp is designed to surround and firmly grip a vertical round baluster pipe, providing a mechanical connection via M8 threaded mounting points to secure posts to walls, fascias, or mounting plates.
Q2: What pipe diameters and thread sizes are featured on this clamp?
A: The circular clamping loop (Ø) accommodates 42.4 mm and 48.3 mm round tubes, while the square block incorporates dual M8 threaded holes for bolt mounting.
Q3: What are the front mounting face width options (L)?
A: This model is available in total front mounting face widths (L) of 50 mm and 55 mm.
Q4: Which stainless steel material grade is recommended for outdoor or marine use?
A: Select AISI 316 or Duplex SS 2205 stainless steel for outdoor, coastal, or marine applications to ensure maximum resistance against chloride pitting, salt spray, and atmospheric oxidation.
