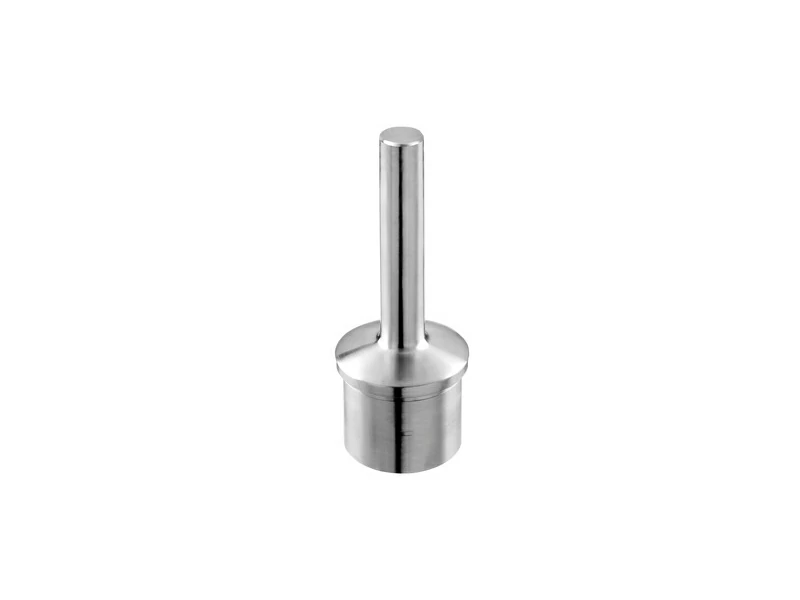

The Stainless Steel Round Post Handrail Bracket is a precision-engineered fitting designed for modern railing systems. Built to provide a secure and stylish connection between handrails and posts, this bracket is compatible with both 42.4mm and 48.3mm tubes. With multiple material grades, finish options, and universal tube compatibility, Round Post Handrail Bracket is a versatile solution for any stair railing system or glass balustrade project.
|

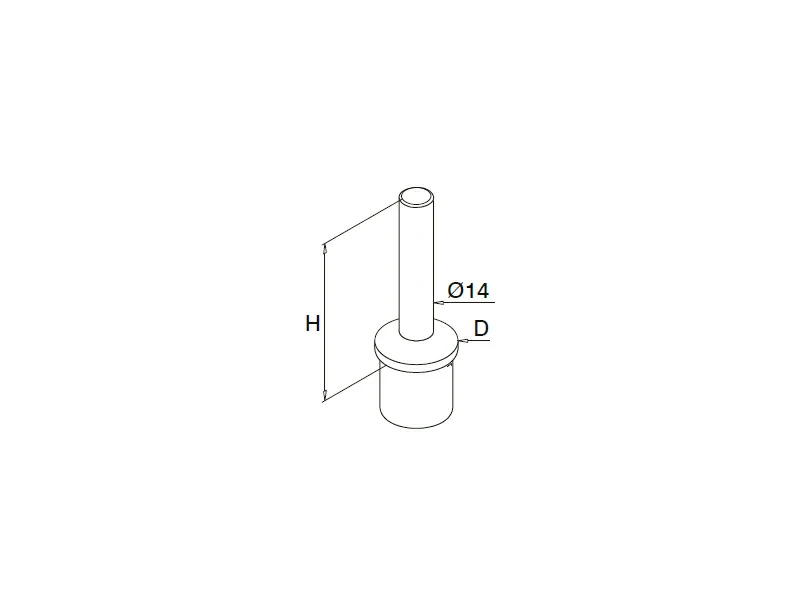

Category |
Part NO. |
D |
H |
Material |
Surface |
Place of Production |
|
Handrail Supports |
F021.42.20 |
42.4 × 2.0mm |
80mm |
AISI 304, 316 or Duplex SS 2205 |
Satin or Mirror polished |
Shandong, China |
|
Handrail Supports |
F021.48.20 |
48.3 × 2.0mm |
80mm |
|||
|
Handrail Supports |
F021.42.26 |
42.4 × 2.6mm |
80mm |
|||
|
Handrail Supports |
F021.48.26 |
48.3 × 2.6mm |
80mm |
1. Advantage: Easier and quicker installatio; Easier cleaning and maintenance
2. Manufacturing Process: Investment Casting + Precision Machining+Polishing
3. Application Scenario: Office Building, Hospital, School, Mall, Sports Venues, Leisure Facilities, Supermarket, Warehouse, Workshop, Park, Hotel, Villa, Apartment, etc.
4. Use Place: Bridge Railings / Handrails, Deck Railings / Handrails, Porch Railings / Handrails, Stair Railings / Handrails
5. Certificate: ISO9001:2015
6. Engineering Solution Capability: Graphic Design, 3d Model Design, Total Solution For Projects
7. Certificates: Material Certificates, Dimension Inspection Certificate
8. Lead Time : 45days for samples making +50days batch production after handrail support samples approved
9. Warranty Service: 1 Year
10. After-sales Service: Online Technical Support, Return And Replacement
