The Stainless Steel Glass Handrail Bracket is a premium architectural support fitting engineered to secure handrails across modern glass balustrades, staircases, and balconies. Designed to maintain a sleek, minimalist aesthetic while ensuring optimal safety, this component provides dependable structural support for handrail runs mounted adjacent to glass panels or balustrade posts. Combining a clean aesthetic with heavy-duty construction, it fulfills demanding commercial and residential safety requirements.

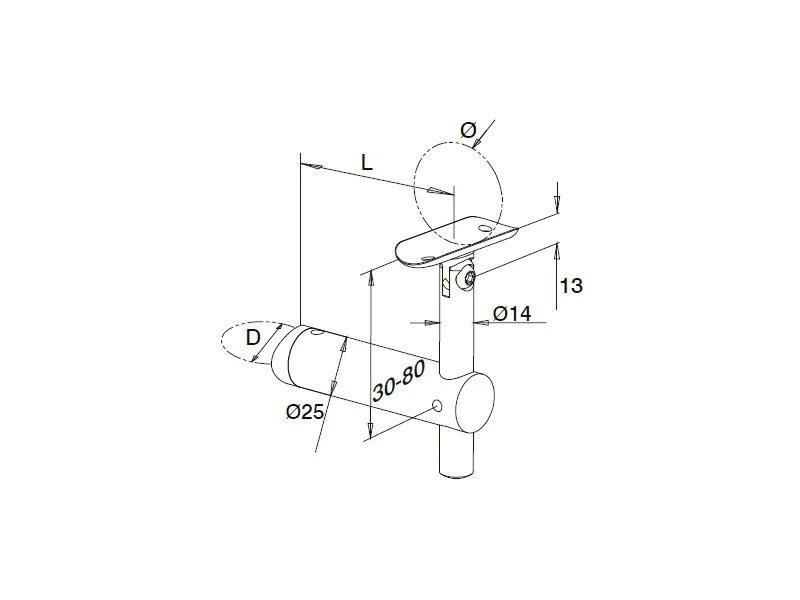

The structural assembly consists of a ∅ 25 mm horizontal main arm projecting L = 85 mm from the mounting base to the handrail centerline, providing generous hand clearance. A solid ∅ 14 mm vertical support pin offers an adjustable height range of 30 mm to 80 mm (measured from the horizontal arm axis to the mounting plate) alongside a 13 mm clearance height from the articulation joint to the saddle. The mounting base (D) and top saddle plate (∅) are compatible with flat surfaces as well as standard round handrail tubing with outer diameters of ∅ 42.4 mm and ∅ 48.3 mm.
Manufactured in AISI 304 and AISI 316 stainless steel material grades, these adjustable handrail brackets deliver long-term corrosion resistance and mechanical strength. Available in brushed satin and mirror polished surface finishes, these versatile handrail fittings serve as essential hardware for modern architectural railing systems.
|
Category |
Part NO. |
Ø |
L |
Material |
Surface |
Place of Production |
|
Handrail Brackets |
E015.00.00 |
Flat |
85mm |
Stainless Steel 304 / 316 |
Satin or Mirror polished |
Shandong, China |
| Handrail Brackets |
E015.00.42 |
42.4mm | 85mm | |||
| Handrail Brackets |
E015.00.48 |
48.3mm | 85mm |
1. Advantage: Easier and quicker installatio; Easier cleaning and maintenance
2. Manufacturing Process: Investment Casting + Precision Machining+Polishing
3. Application Scenario: Hotel, Villa, Apartment, Office Building, Hospital, School, Mall, Sports Venues, Leisure Facilities, Supermarket, Warehouse, Workshop, Park, etc.
4. Use Place: Bridge Railings / Handrails, Deck Railings / Handrails, Porch Railings / Handrails, Stair Railings / Handrails
5. Installation Location: Wall / Post
6. Design Style: Contemporary, Modern, European, Craftsman
7. Certificate: ISO9001:2015
8. Engineering Solution Capability: Graphic Design, 3d Model Design, Total Solution For Projects
9. Certificates: Material Certificates, Dimension Inspection Certificate
10. Lead Time : 45days for samples making +50days batch production after handrail bracket samples approved
11. Warranty Service: 1 Year
12. After-sales Service: Online Technical Support, Return And Replacement
Q1: What is the main function of this Stainless Steel Glass Handrail Bracket?
A: This Stainless Steel Glass Handrail Bracket securely supports top rails or secondary grab rails alongside glass balustrades, providing continuous support and alignment across stairways and walkways.
Q2: How does the height adjustment feature work during installation?
A: The ∅ 14 mm vertical support pin slides smoothly within the ∅ 25 mm horizontal arm, offering a 30 - 80 mm adjustment range to level handrail runs and accommodate sloped stair transitions.
Q3: What handrail diameters can be mounted on the top saddle?
A: The top saddle plate accommodates flat-bottom timber or stainless steel handrails, as well as round architectural tubes with outer diameters of ∅ 42.4 mm and ∅ 48.3 mm.
Q4: Which stainless steel grade should I specify for my project?
A: Specification depends on the installation environment:
AISI 304: Ideal for indoor residential staircases, office mezzanines, and climate-controlled commercial interiors.
AISI 316: Standard specification for outdoor balconies, walkways, and humid environments requiring enhanced weather and pitting resistance.
