The Wall Mount Handrail Bracket is a heavy-duty stainless steel support fitting engineered to anchor handrails firmly to walls, masonry, or upright structural surfaces. Featuring a solid Ø 14mm support arm and a decorative base rosette flange (D = 60 mm), this bracket delivers exceptional structural load capacity while concealing wall fasteners for a clean, modern aesthetic.

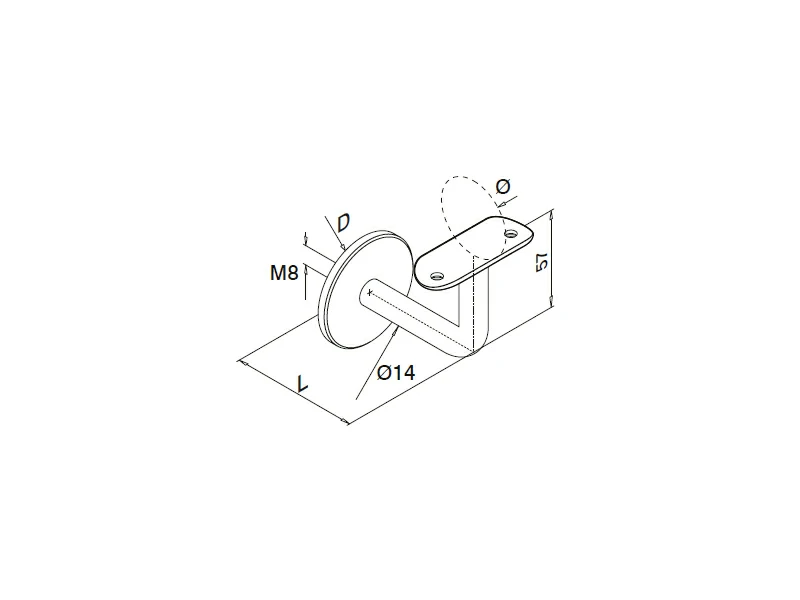

Equipped with an M8 metric threaded anchor bolt, this single-point heavy-duty Handrail Bracket provides a simplified yet ultra-stable wall anchoring system. Engineering parameters include an overall projection length (L) of 85 mm extending to the outer elbow bend and a vertical offset height of 57 mm from the horizontal arm axis to the top mounting saddle plate. The upper saddle supports flat-bottom handrails as well as standard round tube profiles with outside diameters of Ø 42.4 mm and Ø 48.3 mm.
Manufactured in AISI 304, AISI 316, and Duplex SS 2205 stainless steel grades, these architectural handrail fittings are available in fine brushed satin (matte) and high-luster mirror polished surface treatments. Whether specified for residential staircases, commercial corridors, or demanding industrial and marine settings, these brackets ensure code-compliant safety and long-term durability.
|
Category |
Part NO. | D | L | Ø |
Material |
Surface |
Place of Production |
|
Handrail Brackets |
E004.00.00 |
60mm | 85mm |
Flat |
AISI 304,316 or Duplex SS 2205 |
Satin or Mirror polished |
Shandong, China |
| Handrail Brackets |
E004.00.42 |
60mm | 85mm |
42.4mm |
|||
| Handrail Brackets |
E004.00.48 |
60mm | 85mm |
48.3mm |
1. Manufacturing Process: Investment Casting + Precision Machining+Polishing
2. Application Scenario: Hotel, Villa, Apartment, Office Building, Hospital, School, Mall, Sports Venues, Leisure Facilities, Supermarket, Park, Bathroom, Outdoor, Exterior, Entry, Hall, Staircase, Gym
3. Use Place: Bridge Railings / Handrails, Deck Railings / Handrails, Porch Railings / Handrails, Stair Railings / Handrails
4. Installation Location: Wall / Post
5. Design Style: Contemporary, Modern, European, Craftsman
6. Certificate: ISO9001:2015
7. Engineering Solution Capability: Graphic Design, 3d Model Design, Total Solution For Projects
8. Certificates: Material Certificates, Dimension Inspection Certificate
9. Lead Time : 60days batch production after handrail bracket samples approved
10. Warranty Service: 1 Year
11. After-sales Service: Online Technical Support, Return And Replacement
Q1: What is the main advantage of using an M8 threaded Wall Mount Handrail Bracket?
A: The single M8 central threaded bolt simplifies hole drilling and installation while providing deep, heavy-duty structural anchoring into concrete, masonry, or wood studs. The decorative 60 mm cover rosette slides over the base to completely conceal the mounting bolt.
Q2: What handrail tube sizes are compatible with this bracket saddle?
A: The saddle plate is precision-contoured to fit flat-bottom handrails as well as standard round architectural pipes with outside diameters of Ø 42.4 mm (1.67 in) and Ø 48.3 mm (1.90 in).
Q3: How do I choose the correct stainless steel grade for my installation?
A: Selection depends on environmental exposure:
AISI 304: Best suited for dry interior spaces, such as residential staircases and indoor commercial hallways.
AISI 316: Ideal for general outdoor walkways, balconies, decks, and humid public buildings exposed to weather.
Duplex SS 2205: Recommended for extreme coastal, marine, and chemical environments requiring maximum yield strength and resistance to salt fog corrosion.
Q4: What surface finishes are available for these Handrail Brackets?
A: You can choose between a satin (brushed matte) finish that conceals fingerprints and micro-scratches in high-traffic zones, or a mirror polished (highly reflective) finish that offers superior surface smoothness to minimize salt, grime, and environmental residue buildup.
