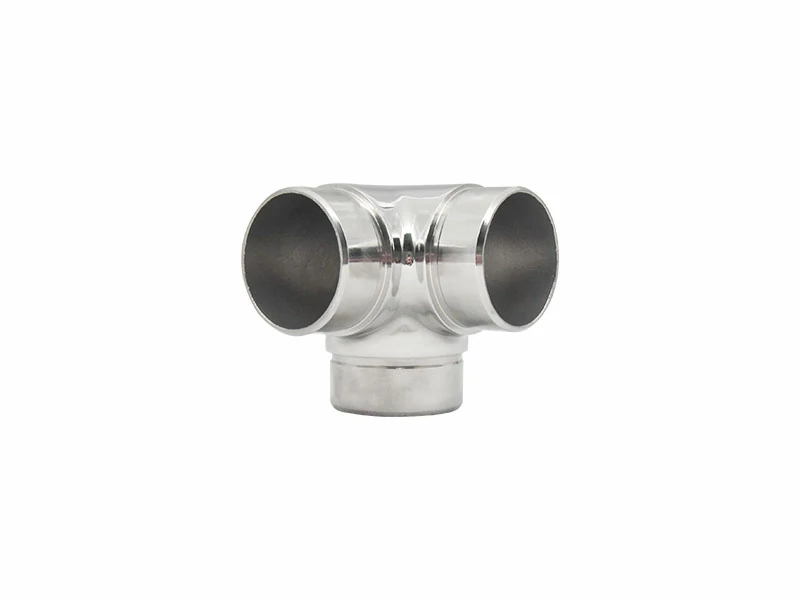

This 90° 3-way Tube Connector is a premium architectural fitting engineered for creating strong, seamless three-way joints in handrail and balustrade systems. This flush joiner is designed for joining three tubes at a right angle, typically utilized for corner sections or intermediate structural supports.
The design features a flush-fitting mechanism where the connector sits entirely inside the tubing, resulting in an almost seamless, polished finish with low tolerances. This eliminates the need for welding or visible external fasteners, enhancing the aesthetic appeal of the railing system. Crafted from high-quality 304 or 316 grade stainless steel, the fitting guarantees exceptional durability and corrosion resistance.
|

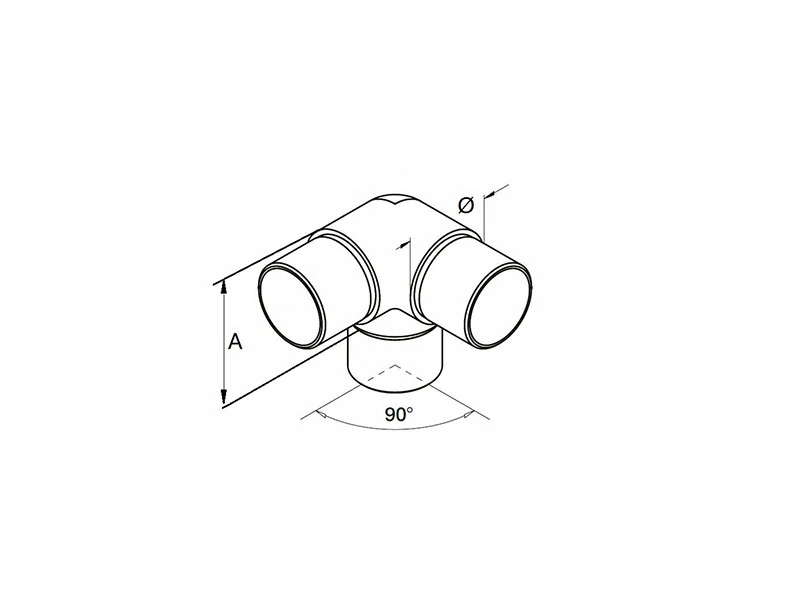

Category |
Part NO. |
Fit for Tube
(mm) |
A (mm) |
Ø (mm) |
Design Type |
Material |
Surface |
| Tube Joiners |
A0625 |
Ø25.4 x 1.5
|
35 |
25.4 |
Internal flush joiner6 |
Stainless Steel 304 / 31 |
Satin or Mirror polished |
| Tube Joiners |
A0650 |
Ø50.8 x 1.5
|
57 |
50.8 |
1. Advantage: Easier and quicker installatio; Easier cleaning and maintenance
2. Manufacturing Process: Investment Casting + Precision Machining+Polishing
3. Application Scenario: Hotel, Villa, Apartment, Office Building, Hospital, School, Mall, Sports Venues, Leisure Facilities, Supermarket, Warehouse, Workshop, Park, Farmhouse, Courtyard, Home Bar, Staircase, Basement, etc.
4. Use Place: Bridge Railings / Handrails, Deck Railings / Handrails, Porch Railings / Handrails, Stair Railings / Handrails
5. Design Style: Contemporary, Modern, European, Craftsman
6. Certificate: ISO9001:2015
7. Certificates: Material Certificates, Dimension Inspection Certificate
8. Engineering Solution Capability: Graphic Design, 3d Model Design, Total Solution For Projects, Others
9. Lead Time : 50days batch production after tube connector samples approved
10. Warranty Service: 1 Year
11. After-sales Service: Online Technical Support, Return And Replacement
Q1: Where is the 90° 3-way Tube Connector typically used?
A: It is primarily used for creating structural 3-way joints in handrail, balustrade, and railing systems, particularly for corner sections where both vertical and horizontal tubes intersect.
Q2: Why does the flush-fitting design provide an almost seamless finish?
A: Because the connector fits entirely inside the tube, it minimizes the visible joint, creating a smooth, polished transition that is highly valued in modern architectural design.
Q3: Is welding required to install this tube connector?
A: No, welding is generally not required. Its precise flush-fit design eliminates the need for welding or mechanical fasteners, and installation is typically completed using a high-strength stainless steel adhesive.
Q4: Which stainless steel grades are available for this connector?
A: This tube connector is available in 304 or 316 grade stainless steel, offering excellent options for indoor (304) or harsh/marine (316) environments.
