The Wall Bracket Handrail with Coach Screw Flat Top is a heavy-duty mounting component designed to anchor flat-profile handrails securely to structural walls across modern residential and commercial settings. Built for high-stress applications requiring exceptional load capacity, this wall-mounted bracket combines structural integrity with a clean architectural appearance.
Each unit features a heavy-duty integrated mounting bolt/coach screw that anchors directly into wood studs, masonry, or structural backing. A decorative 63 mm cover flange plate (rosette) conceals the anchor hardware for a seamless, flush installation. The flat rectangular saddle plate includes two pre-drilled fixing holes engineered to support timber or flat steel handrail profiles.
Precision-engineered dimensions include a 85 mm vertical stem height, a 62 mm horizontal wall projection offset, and a 63 mm cover flange diameter. Available in AISI 304, AISI 316, and Duplex SS 2205 material options with brushed satin or mirror polished surface treatments, this premium Stainless Steel Handrail Bracket delivers long-lasting corrosion resistance and modern design appeal.
|
Category |
Part NO. |
Fit for Tube
(mm) |
A (mm) |
B (mm) |
C (mm) |
Material |
Surface |
Place of Production |
| Handrail Brackets |
D0200 |
Flat
|
85 | 62 |
63 |
AISI 304, 316 or Duplex SS 2205 |
Satin or Mirror polished |
Shandong, China |
1. Manufacturing Process: Investment Casting + Precision Machining+Polishing
2. Application Scenario: Hotel, Villa, Apartment, Office Building, Hospital, School, Mall, Sports Venues, Leisure Facilities, Supermarket, Park, Bathroom, Outdoor, Exterior, Entry, Hall, Staircase, Gym
3. Use Place: Bridge Railings / Handrails, Deck Railings / Handrails, Porch Railings / Handrails, Stair Railings / Handrails
4. Installation Location: Wall
5. Design Style: Contemporary, Modern, European, Craftsman
6. Certificate: ISO9001:2015
7. Engineering Solution Capability: Graphic Design, 3d Model Design, Total Solution For Projects
8. Certificates: Material Certificates, Dimension Inspection Certificate
9. Lead Time : 60days batch production after handrail bracket samples approved
10. Warranty Service: 1 Year
11. After-sales Service: Online Technical Support, Return And Replacement
Q1: What type of handrail profiles are compatible with this Wall Bracket Handrail?
A: This bracket features a flat mounting plate with two fixing holes, making it designed specifically for flat-bottom wooden handrails, rectangular steel profiles, or flat aluminum top rails.
Q2: How does the coach screw mounting mechanism work?
A: The integrated heavy-duty coach screw provides a strong direct mount into structural wall studs or masonry plugs. Once driven securely into the substrate, the round decorative cover flange (rosette) slides over the mounting point to conceal the underlying bolt.

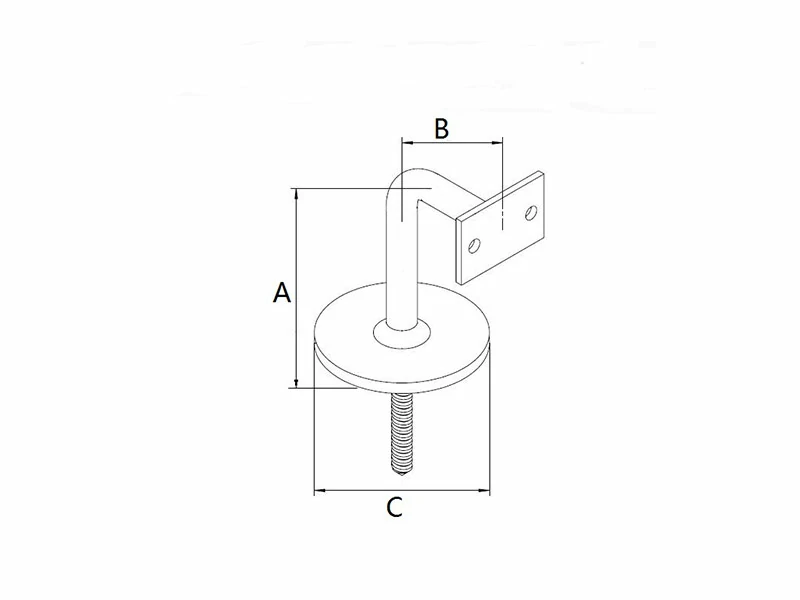

Q3: What are the primary technical dimensions for this hardware?
A: Standard geometric parameters include:
Bracket Stem Height (A): 85 mm (vertical clearance from the cover flange top surface to the horizontal arm axis)
Projection / Wall Offset (B): 62 mm (horizontal distance from the wall mounting surface to the vertical stem centerline)
Cover Flange Diameter (C): 63 mm (outside diameter of the decorative cover plate)
Q4: Which stainless steel grade should I select for my project?
A: Grade selection depends on installation conditions:
AISI 304: Best for dry, climate-controlled interior hallways, stairwells, and residential spaces.
AISI 316: Suitable for general outdoor staircases, exterior balconies, and humid environments.
Duplex SS 2205: Engineered for extreme environments, coastal zones exposed to salt air, and heavy-duty industrial applications requiring maximum tensile strength and corrosion resistance.
Q5: What surface finishes are available for these handrail fittings?
A: We offer a subtle brushed satin finish (ideal for hiding smudges in high-traffic interior spaces) and a reflective mirror polished finish (offering enhanced smooth surface defense against outdoor environmental elements).
