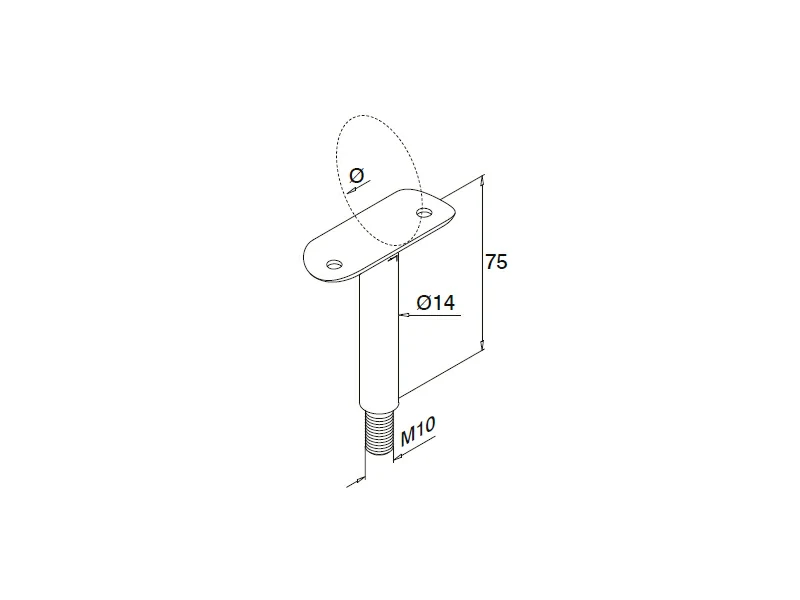

The Stainless Steel Glass Railing Support is a specialized hardware component designed for railing systems. The handrail support is made from high-quality stainless steel, with options for AISI 304, 316, or Duplex SS 2205. The support comes in either a Satin or Mirror Polished finish, which helps to enhance the aesthetic appeal of the railing system. The post features a threaded (M10) design, which allows for easy installation and secure fastening. This glass railing support is often used in modern architectural designs for staircases, balconies, and other installations where transparency and sleekness are desired.
|
Category |
Part NO. |
Ø |
H |
Material |
Surface |
Place of Production |
|
Handrail Supports |
F005.14.00 |
Flat |
75mm |
AISI 304, 316 or Duplex SS 2205 |
Satin or Mirror polished |
Shandong, China |
|
Handrail Supports |
F005.14.33 |
33.7mm |
75mm |
|||
|
Handrail Supports |
F005.14.42 |
42.4mm |
75mm |
|||
|
Handrail Supports |
F005.14.48 |
48.3mm |
75mm |
1. Tube Thickness: 2.0mm or 2.6mm
2. Manufacturing Process: Investment Casting + Precision Machining+Polishing
3. Application Scenario: Hotel, Villa, Apartment, Office Building, Hospital, School, Mall, Sports Venues, Leisure Facilities, Supermarket, Warehouse, Workshop, Park, Wine Cellar, Entry, etc.
4. Use Place: Bridge Railings / Handrails, Deck Railings / Handrails, Porch Railings / Handrails, Stair Railings / Handrails
5. Installation Location: Floor / Wall
6. Certificate: ISO9001:2015
7. Engineering Solution Capability: Graphic Design, 3d Model Design, Total Solution For Projects, Others
8. Certificates: Material Certificates, Dimension Inspection Certificate
9. Lead Time : 45days for samples making +50days batch production after railing support samples approved
10. Warranty Service: 1 Year
11. After-sales Service: Online Technical Support, Return And Replacement
