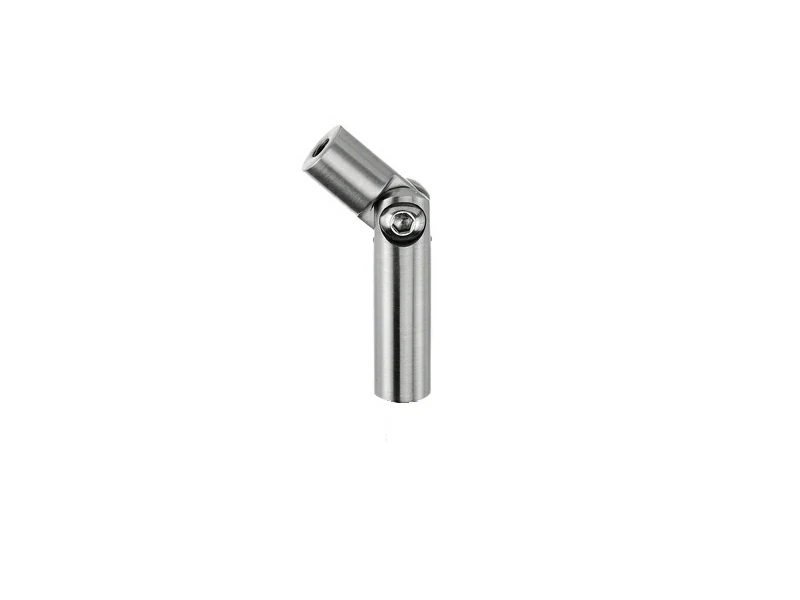

The Stainless Steel Adjustable Handrail Support Bar is a versatile and high-precision component, specifically designed to fit the F020 handrail system. It combines the primary function of a handrail support with the added benefit of on-site vertical height adjustment. This design allows the installer to precisely raise or lower the handrail’s height, ensuring perfect alignment and a professional finish, which is crucial for custom installations or correcting minor discrepancies in post height. This adjustable handrail support bar is perfect for applications where flexibility is needed in terms of the handrail’s angle, allowing for an optimal fit for staircases, ramps, or other angled settings. The design is also both functional and aesthetically appealing, offering a sleek, modern look with its stainless steel finish.
|

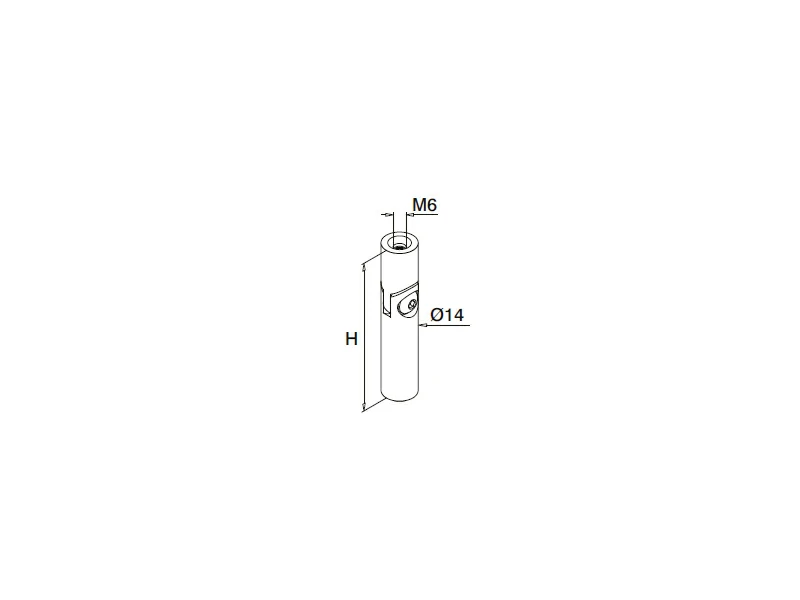

Category |
Part NO. |
Ø |
H |
Material |
Surface |
Place of Production |
|
Handrail Supports |
F012.14.01N |
14mm |
100mm |
AISI 304, 316 or Duplex SS 2205 |
Satin or Mirror polished |
Shandong, China |
1. Tube Thickness: 2.0mm or 2.6mm
2. Manufacturing Process: Investment Casting + Precision Machining+Polishing
3. Advantage: Easier and quicker installatio; Easier cleaning and maintenance
4. Application Scenario: Hotel, Villa, Apartment, Office Building, Hospital, School, Mall, Sports Venues, Leisure Facilities, Supermarket, Warehouse, Workshop, Park, Wine Cellar, Entry, etc.
5. Use Place: Bridge Railings / Handrails, Deck Railings / Handrails, Porch Railings / Handrails, Stair Railings / Handrails
6. Installation Location: Floor / Wall
7. Certificate: ISO9001:2015
8. Engineering Solution Capability: Graphic Design, 3d Model Design, Total Solution For Projects, Others
9. Certificates: Material Certificates, Dimension Inspection Certificate
10. Lead Time : 45days for samples making +50days batch production after railing support samples approved
11. Warranty Service: 1 Year
12. After-sales Service: Online Technical Support, Return And Replacement
