Welded Handrail Brackets are heavy-duty stainless steel support hardware designed to anchor handrails to walls, posts, or vertical structural framework. Featuring a solid weldable pin, these fittings eliminate mechanical saddle screws by welding directly to the underside of metal handrail tubes, delivering unmatched structural stability and a streamlined appearance.

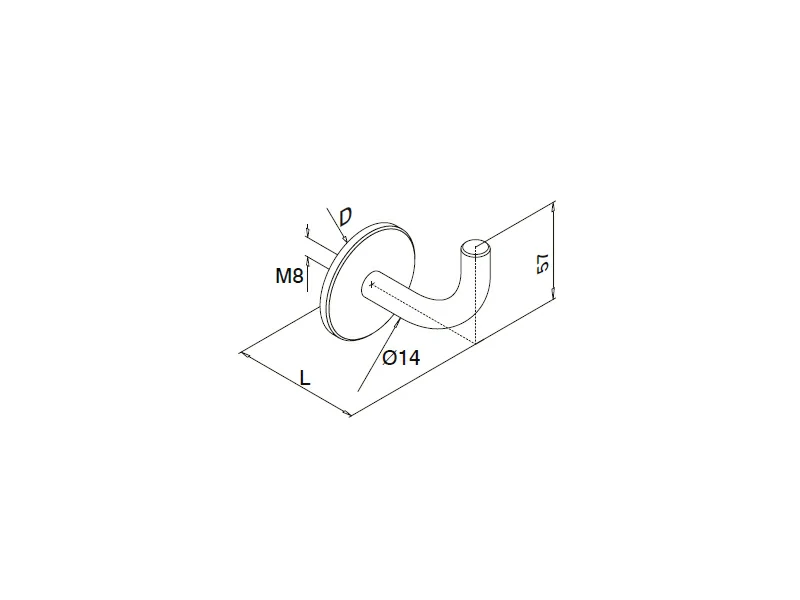

Engineered with an M8 metric threaded stud protruding from the back for single-point wall anchoring, each bracket features a decorative base rosette flange (D = 60 mm) that conceals internal mounting hardware. Technical parameters include a solid ∅ 14 mm cylindrical hook rod, an overall projection length (L) of 85 mm from the base plate, and a total vertical hook tip height of 57 mm.
Manufactured in AISI 304, AISI 316, and Duplex SS 2205 stainless steel material grades with fine satin (brushed matte) or high-luster mirror polished surface finishes, these architectural Handrail Brackets offer excellent corrosion resistance. As essential handrail fittings, they are ideal for high-traffic staircases, walkways, balconies, and commercial balustrade projects.
|
Category |
Part NO. | D | L |
Material |
Surface |
Place of Production |
|
Handrail Brackets |
E005.00.00 |
60mm | 85mm |
AISI 304,316 or Duplex SS 2205 |
Satin or Mirror polished |
Shandong, China |
1. Manufacturing Process: Investment Casting + Precision Machining+Polishing
2. Application Scenario: Hotel, Villa, Apartment, Office Building, Hospital, School, Mall, Sports Venues, Leisure Facilities, Supermarket, Park, Bathroom, Outdoor, Exterior, Entry, Hall, Staircase, Gym
3. Use Place: Bridge Railings / Handrails, Deck Railings / Handrails, Porch Railings / Handrails, Stair Railings / Handrails
4. Installation Location: Wall / Post
5. Design Style: Contemporary, Modern, European, Craftsman
6. Certificate: ISO9001:2015
7. Engineering Solution Capability: Graphic Design, 3d Model Design, Total Solution For Projects
8. Certificates: Material Certificates, Dimension Inspection Certificate
9. Lead Time : 60days batch production after handrail bracket samples approved
10. Warranty Service: 1 Year
11. After-sales Service: Online Technical Support, Return And Replacement
Q1: What is the main benefit of choosing Welded Handrail Brackets over saddle-style brackets?
A: Welded brackets create a seamless, permanent metal connection with the handrail tube by welding the vertical pin directly to the pipe underside. This eliminates top saddle plates and loose screws, offering maximum durability, superior load capacity, and a sleek modern look.
Q2: How is this bracket anchored to the wall?
A: The bracket utilizes an M8 metric threaded stud protruding from the rear of the unit for simplified single-point wall mounting into concrete, masonry, or timber studs. The D = 60 mm circular base rosette covers the drill hole to ensure a clean finish.
Q3: Which stainless steel grade should I select for my project?
A: Grade selection depends on your installation environment:
AISI 304: Best suited for indoor staircases, office corridors, and climate-controlled residential spaces.
AISI 316: Ideal for general outdoor walkways, balconies, decks, and humid public spaces needing enhanced corrosion resistance.
Duplex SS 2205: Engineered for extreme marine, coastal, and harsh chemical environments demanding maximum yield strength and salt fog resistance.
Q4: What surface finishes are available for these Handrail Brackets?
A: These brackets are available in a satin (brushed matte) finish to mask fingerprints and wear in high-traffic areas, or a mirror polished finish for a highly reflective surface that minimizes dirt and environmental residue adhesion.
