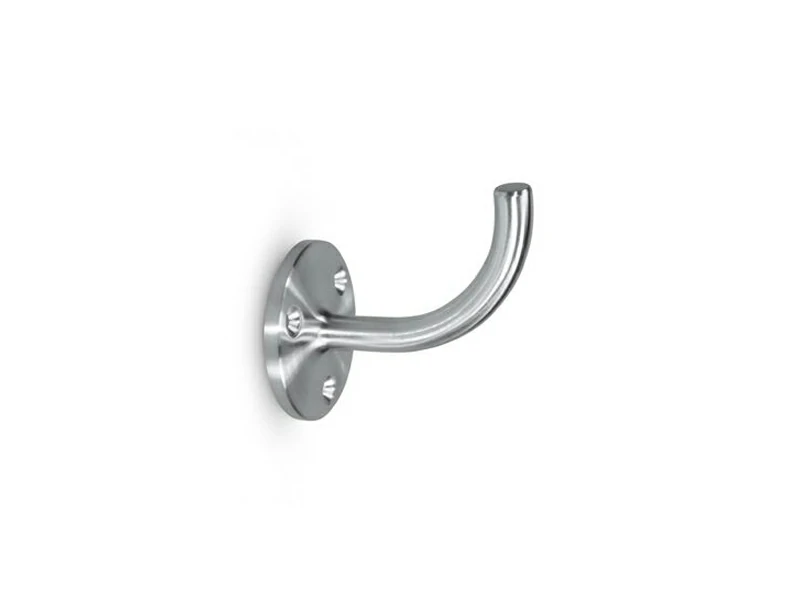

The Handrail Bracket for Welding is a heavy-duty stainless steel support component engineered for direct welded attachment to metal handrail tubes. By eliminating mechanical saddle screws, this weldable stem creates a seamless, ultra-strong joint designed for architectural projects that demand maximum load stability and a sleek, continuous aesthetic.

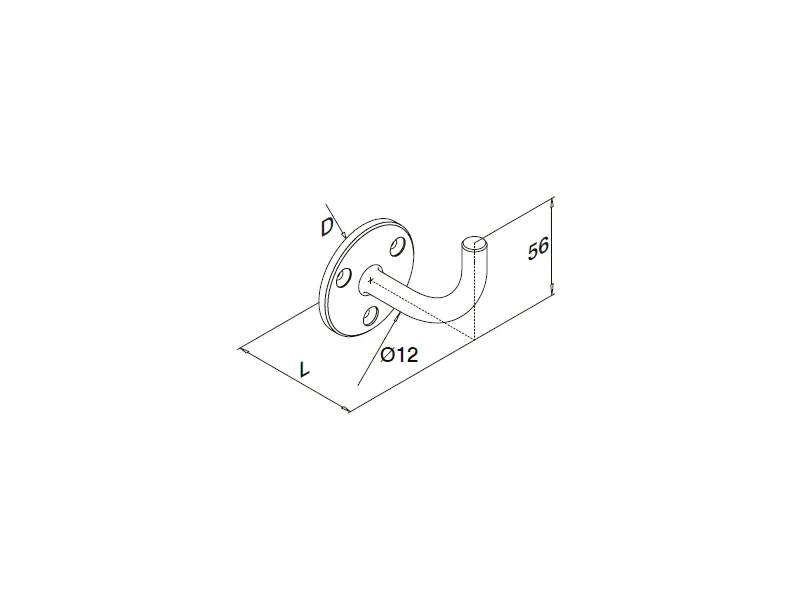

Built with a solid ∅ 12mm curved support rod, the bracket features a flat-ended vertical pin designed to be welded directly to the underside of stainless steel handrail pipes. Key technical specifications include an overall horizontal projection length (L) of 85 mm from the wall, a vertical hook bend height offset of 56 mm, and a heavy-duty circular flange base (D) with a 60 mm diameter containing three countersunk anchor holes for secure wall mounting.
Manufactured from high-grade AISI 304, AISI 316, and Duplex SS 2205 stainless steel, these high-strength Handrail Bracket units are available in brushed satin (matte) and high-luster mirror polished surface finishes. Ideal for high-traffic staircases, commercial walkways, balconies, and industrial metal frameworks, these essential handrail fittings deliver uncompromised structural integrity and weather resistance.
|
Category |
Part NO. | D | L |
Material |
Surface |
Place of Production |
|
Handrail Brackets |
E003.00.00 |
60mm | 85mm |
AISI 304,316 or Duplex SS 2205 |
Satin or Mirror polished |
Shandong, China |
1. Manufacturing Process: Investment Casting + Precision Machining+Polishing
2. Application Scenario: Hotel, Villa, Apartment, Office Building, Hospital, School, Mall, Sports Venues, Leisure Facilities, Supermarket, Park, Bathroom, Outdoor, Exterior, Entry, Hall, Staircase, Gym
3. Use Place: Bridge Railings / Handrails, Deck Railings / Handrails, Porch Railings / Handrails, Stair Railings / Handrails
4. Installation Location: Wall / Post
5. Design Style: Contemporary, Modern, European, Craftsman
6. Certificate: ISO9001:2015
7. Engineering Solution Capability: Graphic Design, 3d Model Design, Total Solution For Projects
8. Certificates: Material Certificates, Dimension Inspection Certificate
9. Lead Time : 60days batch production after handrail bracket samples approved
10. Warranty Service: 1 Year
11. After-sales Service: Online Technical Support, Return And Replacement
Q1: What is the main advantage of using a Handrail Bracket for Welding over a screw-on saddle bracket?
A: Weldable brackets form a permanent, unified metallic connection with the handrail pipe, eliminating mechanical fasteners, top saddles, and loose screws. This provides higher load-bearing strength, superior resistance to structural vibration, and a clean, hardware-free visual appearance.
Q2: How is this bracket installed onto the handrail tube?
A: The top pin of the ∅ 12mm solid stem is positioned against the underside of the stainless steel handrail pipe and welded into place (typically using TIG welding). Once welded, the joint is ground smooth and polished to match the rail finish before securing the base flange to the wall.
Q3: What material options are available for these Handrail Brackets?
A: These brackets are available in three premium stainless steel grades:
AISI 304: Suitable for interior commercial hallways, offices, and residential staircases.
AISI 316: Standard selection for outdoor stairways, balconies, decks, and humid indoor spaces exposed to moisture.
Duplex SS 2205: Engineered for extreme marine, coastal, and chemical industrial environments requiring maximum yield strength and chloride corrosion resistance.
Q: What surface finishes are available?
A: You can select between a brushed satin finish (ideal for hiding fingerprints and micro-scratches in high-traffic public spaces) and a mirror polished finish (offering a bright mirror luster that minimizes salt air and environmental dirt build-up).
